The WTSAFE SF-422 is an AI-powered forklift collision avoidance system built for industrial environments where forklifts and pedestrians share the same floor. Using five independent AI cameras and a forklift-specific deep learning algorithm, it delivers 360° surround detection, real-time pedestrian recognition, and automatic speed control — preventing collisions caused by blind spots, reversing risks, and unsafe driving before contact occurs.
How the Forklift Collision Avoidance System Works

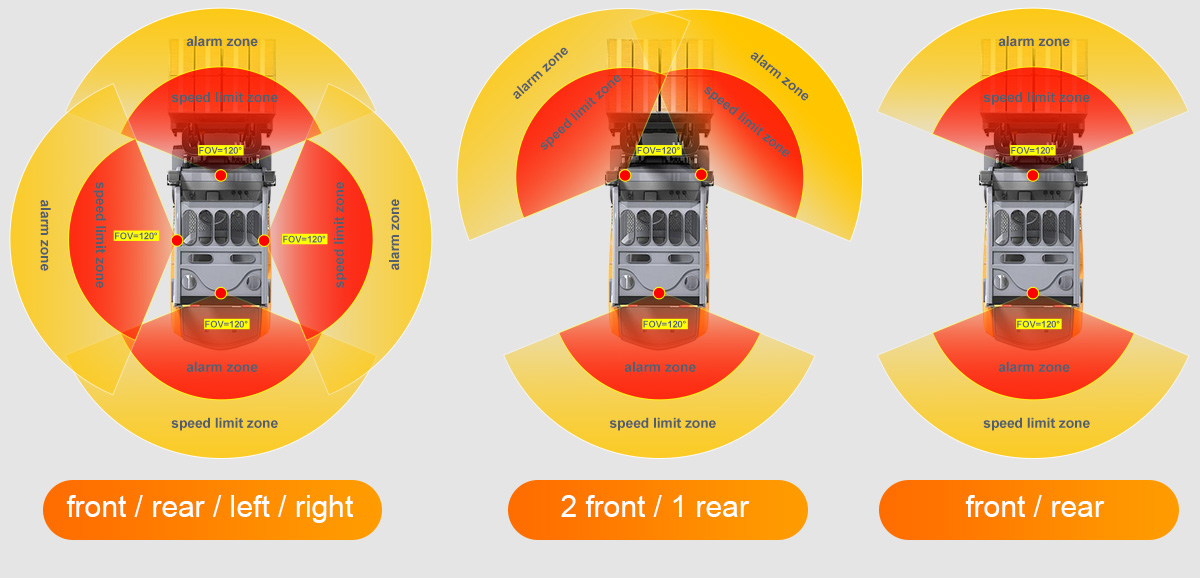

The SF-422 uses five independent AI cameras paired with a deep learning algorithm developed specifically for forklifts. Together they provide continuous 360° surround detection of pedestrians, vehicles, and obstacles around the truck — in front, behind, and along both sides.
When a pedestrian enters a preset safety distance, the system responds in stages:
- Safe Zone — normal operation, continuous monitoring
- Warning Zone — audible and visual warnings triggered
- Braking Zone — the system automatically limits speed or initiates braking
Detection distances are configurable at 5 m, 10 m, and 15 m, giving safety managers the flexibility to match protection zones to aisle width, traffic density, and site layout. This staged response is what separates a true forklift collision avoidance system from a simple alarm: the vehicle reacts to escalating risk automatically, not just the operator.
AI Pedestrian Detection & 360° Blind Spot Monitoring
Blind spots are where most forklift-pedestrian incidents begin — reversing, loading, and turning in narrow aisles. The SF-422 addresses this directly with advanced AI vision that detects pedestrians in front, rear, and side blind zones, including partially obstructed views during loading and reversing.
Key detection capabilities:
- Forklift-optimized AI algorithm with 98% pedestrian recognition accuracy
- Fast response time of 0.03 seconds for real-time protection
- Infrared night vision for accurate recognition and clear imaging in low-light or dark environments
- Collision detection range adjustable from 0 to 13 meters via the mobile app
- Reliable performance in narrow aisles, low-light conditions, and high-traffic areas
Intelligent Speed & Driver Control
Detection alone does not stop a forklift. The SF-422 combines AI collision warning with active vehicle control and driver oversight.
Speed control and overspeed warning. Wireless wheel speed sensors monitor real-time vehicle speed. When overspeed is detected, the system issues voice alerts and automatically limits acceleration, reducing the risk of high-speed impacts in pedestrian zones.
Driver behavior and access management. AI-based driver monitoring detects unsafe behaviors such as fatigue or distraction. Forklift access can be restricted through face recognition or QR authorization, ensuring only trained operators can start the vehicle.
Video recording for safety review. Multi-channel HD video recording provides visual evidence for incident review, safety training, and compliance management.
Specifications
- AI intelligent collision avoidance technology — advanced driver-assistance and dynamic collision warning to protect people, vehicles, and assets
- Driver behavior monitoring — detects signs of fatigue, smoking, phone usage, and other unsafe or unauthorized behaviors
- 5-channel real-time monitoring — supports up to 5 video inputs, displaying and recording 5 high-definition video streams simultaneously for multi-angle monitoring
- Infrared night vision — clear HD imaging in low-light or dark working environments
- Cloud-based management and violation traceability — uploads violation evidence (3 images + 10 s video) for safety oversight and traceability of unsafe behaviors
- 13-meter detection range — adjustable from 0 to 13 meters via the mobile app
For the complete specification sheet, download the product documents or contact us for full specifications.
Why Choose the WTSAFE Forklift Collision Avoidance System
- Designed specifically for forklifts and industrial vehicles, not adapted from generic proximity hardware
- Forklift-optimized AI algorithm with 98% pedestrian recognition accuracy
- 0.03-second response time for real-time protection
- Configurable three-zone protection that escalates from warning to automatic braking
- Improves pedestrian forklift safety while maintaining operational efficiency
WTSAFE is a forklift safety equipment manufacturer serving warehouses, factories, and industrial sites. Our solutions cover forklift safety and collision avoidance, speed alarm and speed limit systems, safety management, driver privilege management, and forklift weighing — alongside safety systems for construction vehicles, loaders, mining equipment, and cranes.
Protecting Pedestrians and Operators on Every Shift
The SF-422 is an intelligent AI collision avoidance solution that detects pedestrians in real time and actively controls speed to enhance pedestrian forklift safety in industrial environments. By combining AI vision, real-time pedestrian detection, and speed control, it reduces accidents in mixed pedestrian–forklift environments — helping prevent collisions caused by blind spots, reversing risks, and unsafe driving behaviors.
