Forklift accidents in warehouses and factories often come down to two things: a pedestrian stepping into a blind spot, or a driver's attention dropping for two seconds in a narrow aisle. The SF-420 forklift AI collision warning system from WTSAFE is built to close that gap. Using dual AI cameras, dynamic detection, and real-time alerts, it identifies pedestrians and obstacles around the vehicle, warns the operator before a close-range incident becomes a collision, and can output a speed-limiting signal when someone enters a defined danger zone.
AI Dynamic Collision Avoidance: Three Zones, One Goal
At the core of the SF-420 is AI dynamic collision avoidance. The system continuously monitors motion around the forklift and tracks pedestrians and obstacles as they move. Rather than a single blunt alarm, it gives you three configurable alert zones:
- Safe Zone — normal operation, no intervention
- Warning Zone — visual and audible alerts prompt the operator to react
- Braking Zone — the system outputs a speed-limiting signal to slow the vehicle and prevent a close-range collision
This layered approach means alerts stay meaningful. Operators aren't flooded with constant warnings, so they respond when it matters.
Wide-Angle Dual AI Cameras: Blind Spots Eliminated
The SF-420 uses two ultra-wide 150° AI cameras with infrared illumination. Together they provide continuous pedestrian monitoring day and night, covering forward, rear, and corner blind spots. In narrow aisles, around racking, and in dim work areas where visibility is already poor, the system maintains awareness the operator cannot achieve alone.

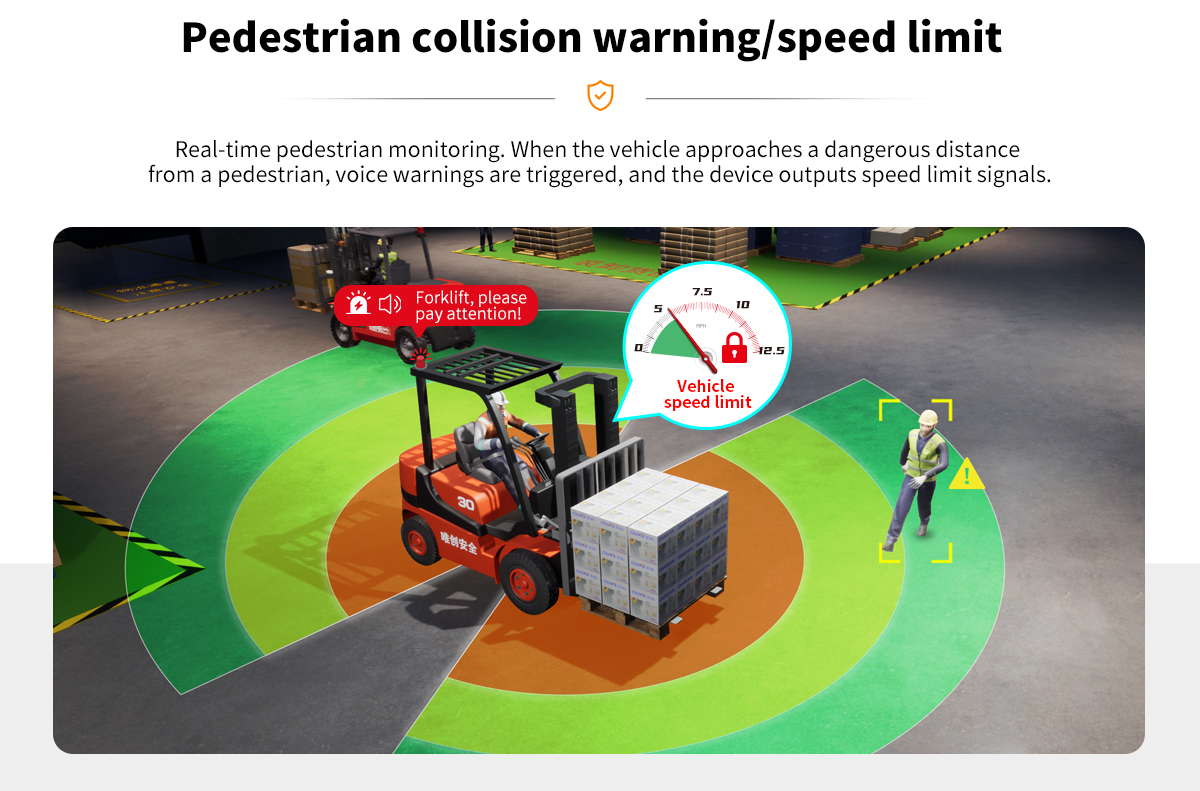

Pedestrian Proximity Warning and Speed Limiting
When a pedestrian approaches the forklift, the system instantly measures the distance and triggers voice and visual alerts inside the cab. If the person continues into the defined danger zone, the SF-420 outputs a speed-limiting signal so the vehicle slows down. This two-stage response—warn first, intervene second—gives operators the chance to correct while still enforcing a hard limit on dangerous approaches.
DMS Driver Behavior Monitoring: Addressing Human Error
Not every collision risk comes from outside the vehicle. The built-in Driver Monitoring System (DMS) detects fatigue, distraction, phone use, and smoking. Unsafe behaviors trigger immediate alerts, helping prevent accidents caused by human error and encouraging safer operating habits over time. For fleet managers, DMS data also supports compliance and coaching.
Real-Time Video Recording
The SF-420 records continuous driving footage in three-minute loops, providing evidence and event review when an incident occurs. When storage is full, files overwrite automatically, so long-term monitoring continues without manual maintenance.
7-Inch Waterproof Display (Optional 10-Inch)
A rugged IP66-rated monitor gives operators clear real-time views of front and rear camera feeds along with speed, mileage, and seat belt status. The interface is simple to read and built for demanding industrial environments. A 10-inch display is available as an option.
Why Operations Choose the SF-420 Forklift AI Collision Warning System
- Reduce accidents caused by blind spots and human error
- Improve operational efficiency through automated warnings instead of manual spotting
- Enhance compliance with behavior monitoring and video records
- Protect people, vehicles, and assets with advanced driver-assistance and real-time collision warning technology
- Overspeed control and auto braking — when the forklift gets too close to people or other vehicles, it automatically slows down or stops
- Fleet visibility — cloud-based platforms and IoT technology give fleet managers real-time operational insights and driver behavior monitoring
The SF-420 is an intelligent safety solution for warehouses, factories, and industrial sites where forklifts work alongside pedestrians and other vehicles. It ships with a one-year after-sales warranty. For full specifications, download the product documents or contact our team directly.
