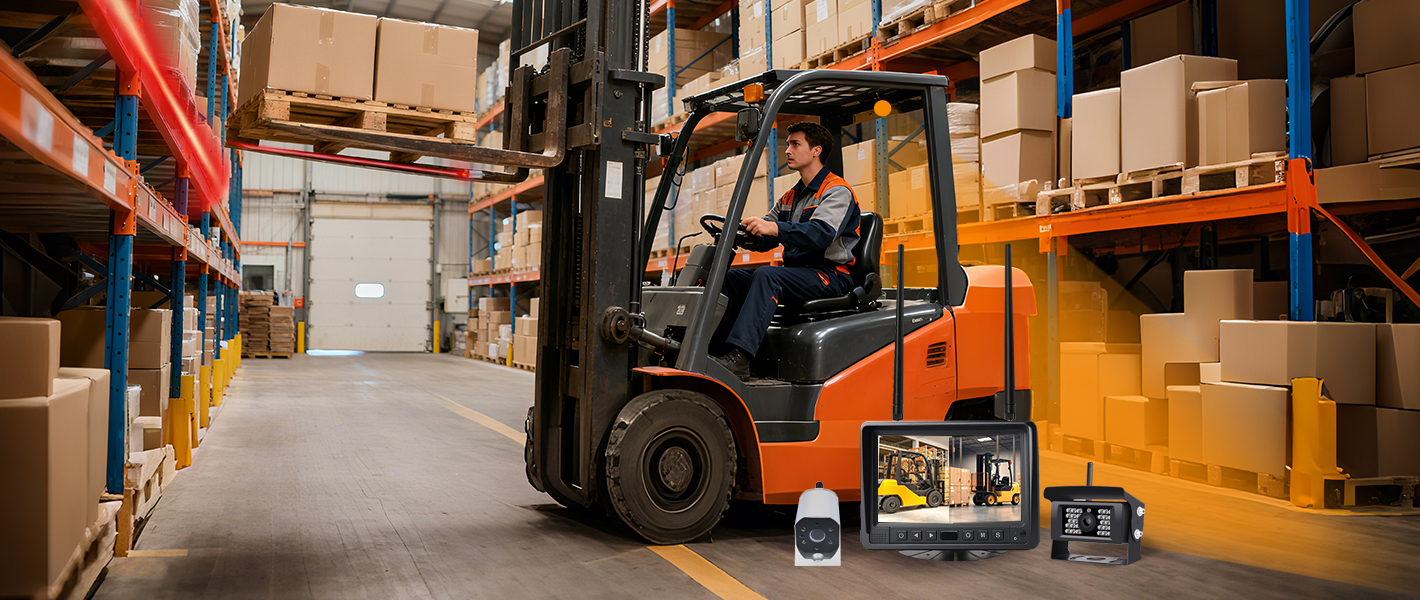

The WTSAFE SF-410V is a wireless forklift camera system built for the realities of fork handling: blind spots, high-lift stacking, and harsh industrial environments. It pairs 1080P HD video imaging with a precision laser guide line, giving operators a clear real-time view of front and rear zones while helping them align forks accurately at height. Designed for forklifts, loaders, and other industrial vehicles, the SF-410V eliminates blind spots, improves stacking accuracy, and supports video recording and playback for operational traceability.
Why Forklift Blind Spots Cost You Money
Every repositioning attempt during high-lift stacking costs time, fuel, and equipment wear. Every reversing incident in a busy warehouse carries the risk of injury, damaged racking, or product loss. Operators working with limited visibility face these risks on every shift — particularly in low light, dusty yards, or crowded multi-forklift environments.
The SF-410V addresses both problems at once. A continuous HD view of the fork area removes the guesswork from reversing and approaching loads, while the built-in laser positioning line gives operators a visual reference for pallet alignment. The result is fewer corrective maneuvers, less collision risk, and faster cycle times.
Key Features of the SF-410V Forklift Camera System
1080P HD Imaging with Night Vision
The wireless forklift laser camera delivers 1080P HD resolution, driven by an automotive-grade DSP chip and an OV night vision lens. This combination maintains image clarity in backlight conditions and low-light scenes — situations where standard cameras typically wash out or go dark. Operators get usable visuals at night, in dim warehouse aisles, and when looking toward bright doorways or loading docks.
Precision Laser Positioning
Integrated into the camera is a high-precision laser guide line. During high-lift stacking, it assists operators in aligning the forks with pallet openings and racking levels, reducing the repeated repositioning that eats into productivity. The laser reference is particularly effective in high-bay warehouses where depth perception from the cab becomes unreliable.
7-Inch IPS Wireless Monitor
The system's 7-inch IPS display offers 1024×600 resolution and 800 cd/㎡ brightness with a 178° wide viewing angle. Anti-glare treatment keeps the screen readable under strong sunlight. The monitor supports automatic reverse view switching, can handle up to four 1080P wireless cameras, includes a built-in speaker, and records AVI video — either single-channel or four-channel — so work footage can be reviewed later.
Stable 2.4G Wireless Transmission
A built-in 2.4G dual-antenna receiver with frequency-hopping anti-interference technology keeps the video signal stable, even when multiple forklifts operate in the same area. Transmission range reaches up to 300 meters in open areas. Cameras pair manually or automatically, simplifying installation and camera changes.
Portable Power with Built-In Protection
The portable rechargeable power pack includes safeguards against short circuits, reverse connection, overcharge, and over-discharge. Constant-current and constant-voltage circuitry extends service life. With an IP67 waterproof rating and a magnetic mount, the pack installs flexibly and withstands demanding conditions.
Built for Demanding Industrial Environments
Durability is not an afterthought on the SF-410V. The camera uses a stainless steel anti-collision shell, and its PVC cable is rated for low-temperature operation from -30°C to 60°C. The full system carries an IP69K waterproof rating, making it suitable for washdown areas, cold storage, outdoor yards, and dusty port environments.
Component Specifications at a Glance
- Monitor: 7-inch IPS, 1024×600 resolution, 800 cd/㎡ brightness, 178° viewing angle, anti-glare
- Camera: 1080P HD, automotive-grade DSP chip, OV night vision lens, built-in laser guide line
- Wireless: 2.4G dual-antenna receiver, frequency-hopping anti-interference, up to 300m open-area range
- Recording: AVI format, single or four-channel, supports up to four 1080P cameras
- Mounting: Rust-resistant U-shaped dual anti-vibration bracket, DC 11–48V wide voltage
- Camera Durability: Stainless steel anti-collision shell, PVC cable rated -30°C to 60°C, IP69K
- Power Pack: Short-circuit, reverse connection, overcharge, and over-discharge protection; IP67; magnetic mount
For full specifications not listed here, contact us directly.
Applications
The SF-410V wireless forklift camera system is suited to:
- High-bay warehouses — accurate high-lift stacking with laser-assisted fork alignment
- Cold storage — reliable operation at low temperatures thanks to the -30°C cable rating
- Ports and outdoor yards — resistance to rain, dust, and direct sunlight
- Multi-forklift operations — stable signal through dual-antenna anti-interference design
Improve Safety, Precision, and Traceability
The SF-410V delivers value across three areas. Safety improves as front and rear blind spots are eliminated in real time, lowering collision risk for both operators and pedestrians. Precision improves through laser-assisted alignment, cutting repositioning time during stacking. Traceability improves with built-in AVI recording, letting supervisors review work footage when incidents or near-misses need investigation.
Together, these benefits reduce equipment wear, lower operational costs, and raise overall workplace efficiency — making the SF-410V a practical fit for smart industrial vehicle monitoring programs.
Compatibility and Installation
The system's DC 11–48V wide voltage input covers a broad range of industrial vehicles, including forklifts and loaders. The U-shaped dual anti-vibration bracket resists rust and absorbs shock during operation. Cameras pair manually or automatically over the 2.4G link, and the portable power pack's magnetic mount keeps installation flexible across fleets.
If you are unsure whether the SF-410V fits your specific vehicle models or fleet configuration, our team can confirm compatibility before you commit.
